Beschreibung

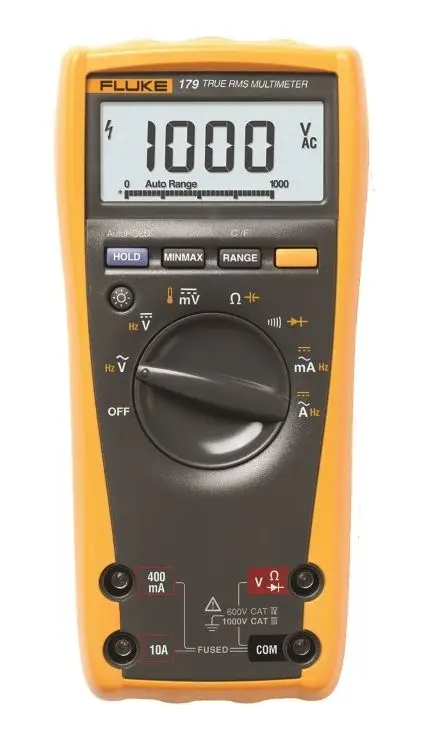

Fluke 179 Multimeter
Fluke 179
- True RMS AC voltage and current value measurements
- Basic accuracy of 0.09%
- Resolution 6000 counts
- Digital display with analog bargraph and backlighting
- Manual and automatic range setting
- Display Hold and Auto Hold
- Measuring frequency and capacity
- Resistance measurement, pass-through and diode test Temperature measurements
- Min/Max/Average registration
- Smoothing for more stable reading of rapidly fluctuating input signals
- De battery kan eenvoudig worden vervangen, zonder dat de behuizing hoeft te worden geopend
- Closed-case calibration via front panel
- Ergonomic housing with integrated protective holster
Technical data
- Fuse 1: FLUKE 943121
- Fuse 2: MMSA030
- Trms Measurements: AC
- Current measurement: yes
- Background Lighting: yes
- Analog Bargraph: yes
- Non-contact Voltage Detection: no
- Hold Function: yes
- Min Max Function: yes
- Temperature: yes
- Call-through Test: yes
- Diode Test: yes
- Resistance: yes
- Low Impedance Voltage Measurement: no
- Mirco Ampere: no
- Low-pass filter: no
- Digits : 6,000
- Weighing: single
- Bargraph: no
- Trms: TRMS AC
- Bandwidth Trms Voltage: 1 kHz
- Bandwidth Trms Current: 1 kHz
- Best Accuracy Voltage Ac: 1.0%+3
- Best Accuracy Voltage Dc: 0.09%+2
- Best Accuracy Current Ac: 1.5%+3
- Best Accuracy Current Dc: 1.0%+3
- Dc Voltage: 1000 V
- Resolution Dc Voltage: 0.1 mV
- Ac Voltage: 1000 V
- Resolution Ac Voltage: 0.1 mV
- Dc Current: 20A (30sec)
- Resolution Dc Current: 0.01mA
- Ac Current: 20A (30sec)
- Resolution Ac Current: 0.01mA
- Temperature Measuring Principle: Type K
- Temperature Measuring Range: 400 C
- Measurement functions Resistance: 0.1W…50MW
- Measurement functions Pass-through test: yes
- Measurement functions Frequency: 10 kHz
- Measurement functions Decibel Measurement Db: no
- Measurement functions Capacitance: 1 nF to 9999 uF
- Measurement Features Non-contact Voltage Detection: no
- Memory: min max average
- Safety: CAT IV 600V; CAT III 1000V
- Ip Value: NS
- Power supply: 1 x 9V
- Weight: 420 g
Includes
- battery
- In box
