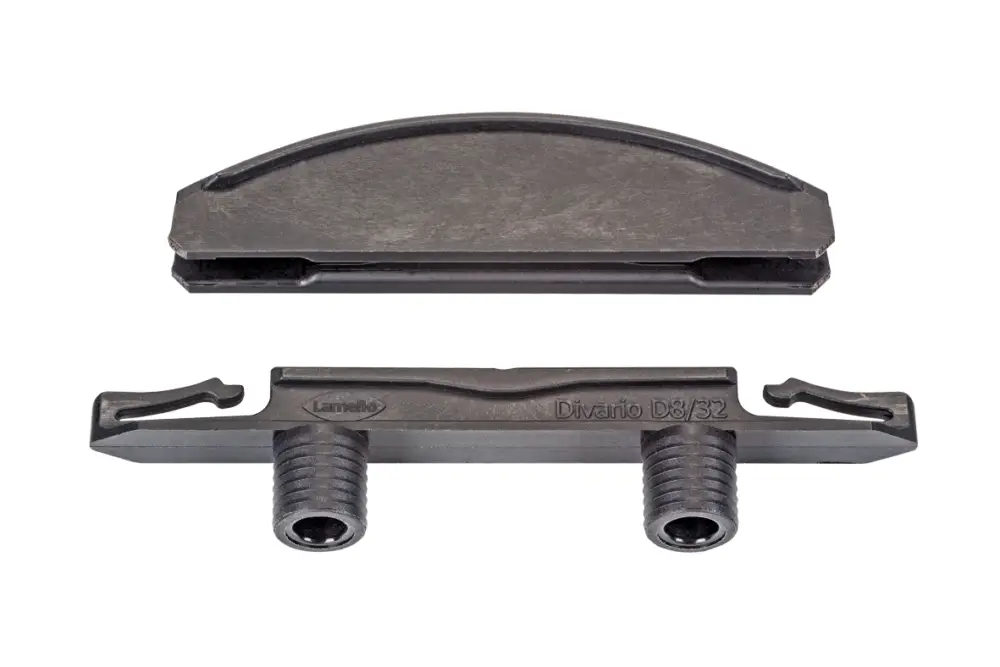

Lamello 145550S Divario P-18 Starter Set 80 Pairs Self-tensioning invisible connector to slide in mounting tool
Features
- Divario P-18 allows you to slide an extendable shelf or a partition into a cabinet that has already been assembled
- In addition, the Divario P-18 strains the parts during insertion and thus ensures nicely closed joints
- The tension itself only builds up at certain points and not over the entire insertion length, which makes it easier to insert the part
- The force-locked connection between the retracted element and the sides allows the connection to take on a high tensile force
- The new connector gives the user more design freedom without having to compromise on stability
- No glue or clamps are needed to insert the elements, so that this can take place at the most advantageous point in the entire production, storage, transport and assembly process
- The connector can be fully or partially assembled on site as required
- The hardware can also be dismantled for transport
- The P-System groove for the connector can be machined either by CNC or very easily by hand using Lamello“s Zeta P2 handheld machine
Benefits
- Fully concealed connection for the highest quality furniture
- Binds and strains during insertion for perfectly closed joints
- Efficient machining and anchoring, with CNC or Zeta, based on the P-System
- Narrow connector enables use in pull-out shelves from 19 mm
- Resistance-free retraction until shortly before tensioning
- Retractable shelves or dividers to reduce transport weight
- Inserting or knocking in the connector
- Removable fixation pins for efficient mounting
- Drilling into the surface is possible with a simple CNC without angle aggregates
- In the workshop or on the building site possible with CNC or Zeta P2
- The joint can take high tensile force
- Reinforcing tall units with fixed pull-out shelves
- Attractive result thanks to closed joints
- No clamping or pressing required
- The drawer unit can be prepared and/or connected separately
- Transporting empty chest of drawers to save weight
- Assembly of the complete furniture unit possible on site (flat pack)
- Installation of the pull-out shelves without glue or clamps
- Dismountable for transport
Specifications
- Dimensions 72 × 25 × 9.7 mm
- Cutter Ø 100.4 x 7 x 22
- Material Fibre-glass reinforced plastic
- Installation tolerance Length ± 1 mm
- Tensile strength ~ 600 N60 kg
Includes
- 80 pairs
- Mounting aid 01125500
„‚
